Commercial Food Equipment Granule Cube Sugar Salt Filling Automatic Horizontal multifunctional packaging machine

Name: Commercial Food Equipment Granule Cube Sugar Salt Filling Automatic Horizontal multifunctional packaging machine
Brand: Leadtop Pharmaceutical Machinery
SKU: HorizonTop--Serie
Price: 32,509.00 USD
Availability: InStock

Merknaam:	LTPM CHINA
Modelnummer:	HorizonTop--Serie
MOQ:	1 set
Prijs:	Consultation and detailed discussion
Betalingsvoorwaarden:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Toeleveringsvermogen:	25sets/maand

Detailinformatie

Productbeschrijving

Detailinformatie

Plaats van herkomst:

Zhejiang, China

Certificering:

CE,ISO

Verpakkingstype:

Stazak, zakken, folie, zak, afdichting

Automatische rangschikking:

Automatisch

Spanning:

380 V/220V

Vulmateriaal:

Poeder, pasta, korrel, vloeistof, vast

Sollicitatie:

Voedsel, drank, grondstoffen, chemicaliën, machines en hardware, kleding, textiel, sigaretten, farma

Garantie:

5 jaar

Verpakking Details:

Standaard houten kist exporteren

Levering vermogen:

25sets/maand

Markeren:

automatic horizontal packaging machine

granule cube sugar filling machine

multifunctional commercial food packaging machine

Productbeschrijving

Products Description

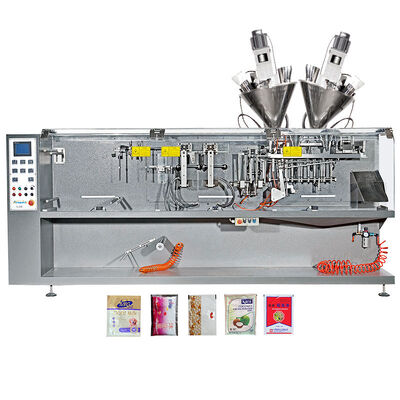

HorizonTop--Series outputs double bags. Max speed 160 bags/min, the economic solution to implement high speed packaging request for small bags.

HorizonTop--Series packaging machine can can complete pouch forming, feeding, measuring, filling, sealing, date printing, nitrogen filling, counting, finished product delivery. It is suitable for filling different products such as powder, granule, tablets, liquid, cream and other non free-flowing liquid when equipped with feeding and measuring devices.

Machine Data

Model	HorizonTop--210	HorizonTop--250	HorizonTop--360	HorizonTop--450	HorizonTop--500
Speed	30-50 bags/min	30-45 bags/min	15-35 bags/min	40-80 bags/min	3-15 bags/min
Accuracy	± 1.5%	± 1.5%	± 1.5%	± 1.5%	± 1.5%
Bag width	55-200mm	80-250mm	120-350mm	100~200mm	120-400mm
Bag height	100-280mm	100-280mm	100-280mm	100~280mm	150-500mm
capacity	1-5kg	1-5kg	1-5kg	1-5kg	1-15kg
Power	4kw	4kw	4kw	6kw	4kw
Gas consumption	0.6m3/min	0.6m3/min	0.6m3/min	0.6m3/min	0.6m3/min
Air pressure value	0.6MPa	0.6MPa	0.6MPa	0.6MPa	0.6MPa
Weight	1450kg	1700kg	2200kg	2000kg	800kg
Size(mm)	290010001390	350010001390	390010001390	380010001200	230010001390
Warranty	5 years	5 years	5 years	5 years	5 years

Commercial Food Equipment Granule Cube Sugar Salt Filling Automatic Horizontal multifunctional packaging machine 2

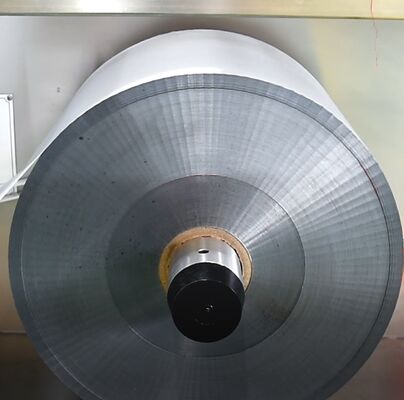

1.Film Unwind 2.Bag Forming 3.Film Guide 4.Photocell5.Bottom seal 6.Vertical seal 7.Second Vertical Seal 8.Tear Notch 9.Double Cutting 10.Pouch Catching 11.Pouch Catching 12.Pouch Pulling 13.Pouch Opening 14.Filling I 15.Filling II 16.Top Seal 17.Finished Product 18.Outlet

Focus On Details

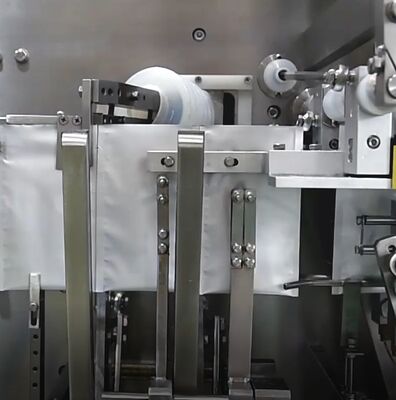

Duplex Desgin

1. Stable operation, easy adjustment

2. 2 pouches at the same time, double productivity

Light Walking Beam

1. Faster working speed

2. Longer operational life span

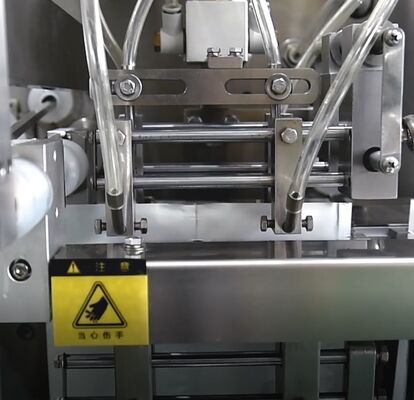

Independent Sealing Device

1. Independent pouch making, no product on seal

2. Higher seal strength, less leakage

3. Better pouch appearance

Commercial Food Equipment Granule Cube Sugar Salt Filling Automatic Horizontal multifunctional packaging machine 6

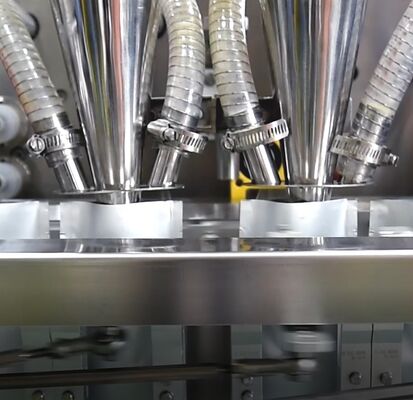

Dual Filling Station

1.Reduce filling time by half

2.Improved filling accuracy

3.Can fill 2 products simultanceously
